4. Module Assembly (2/3)

Step 13

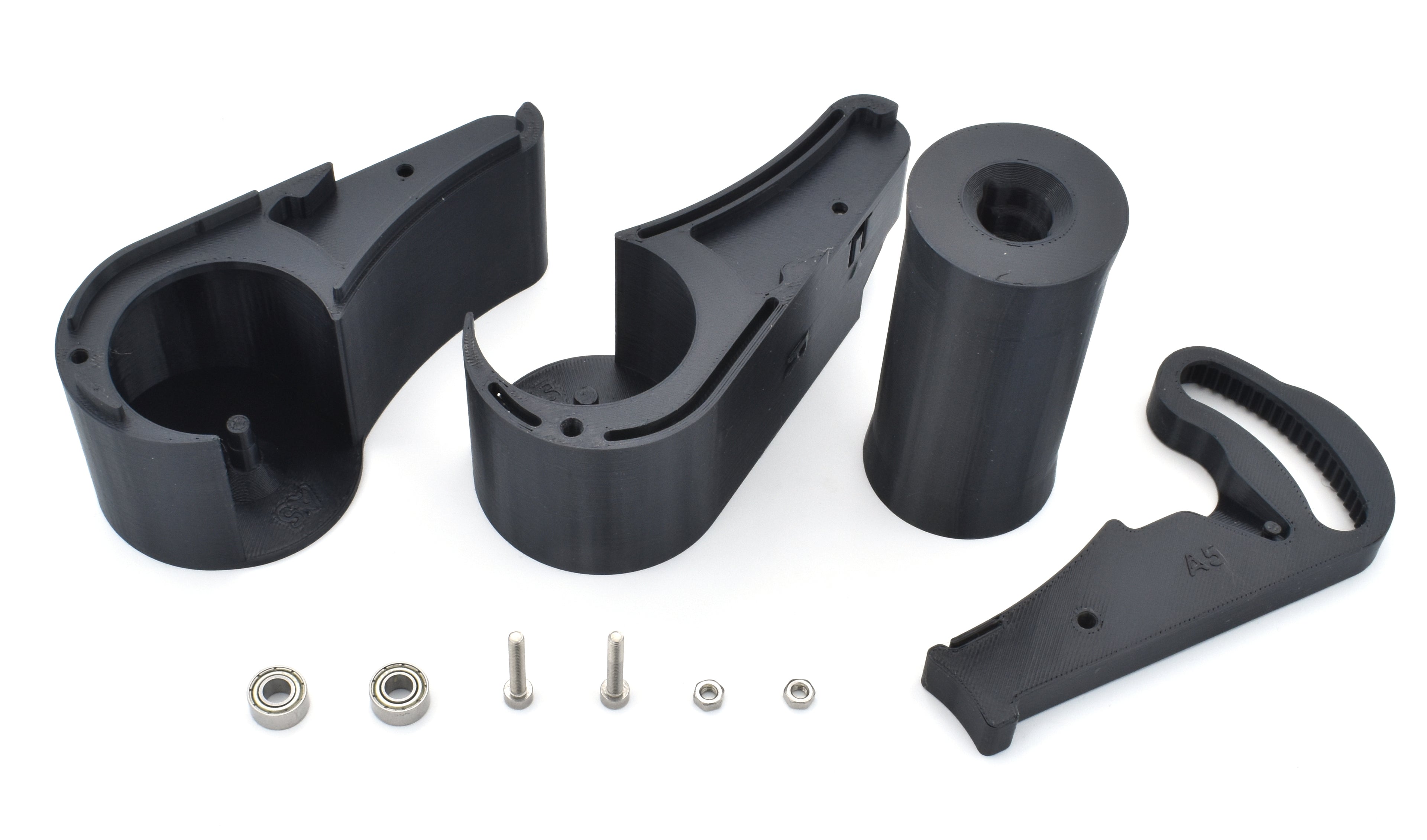

Prepare the following items:

Back-roller (1x)
Arm-R (1x)
Arm-L (1x)
Lever-gear (1x)
Bearing (2x)
M3 hex nut (2x)
M3x20 screw (2x)

Step 19

Let's attach the Arm-assembly to the R-Shell!

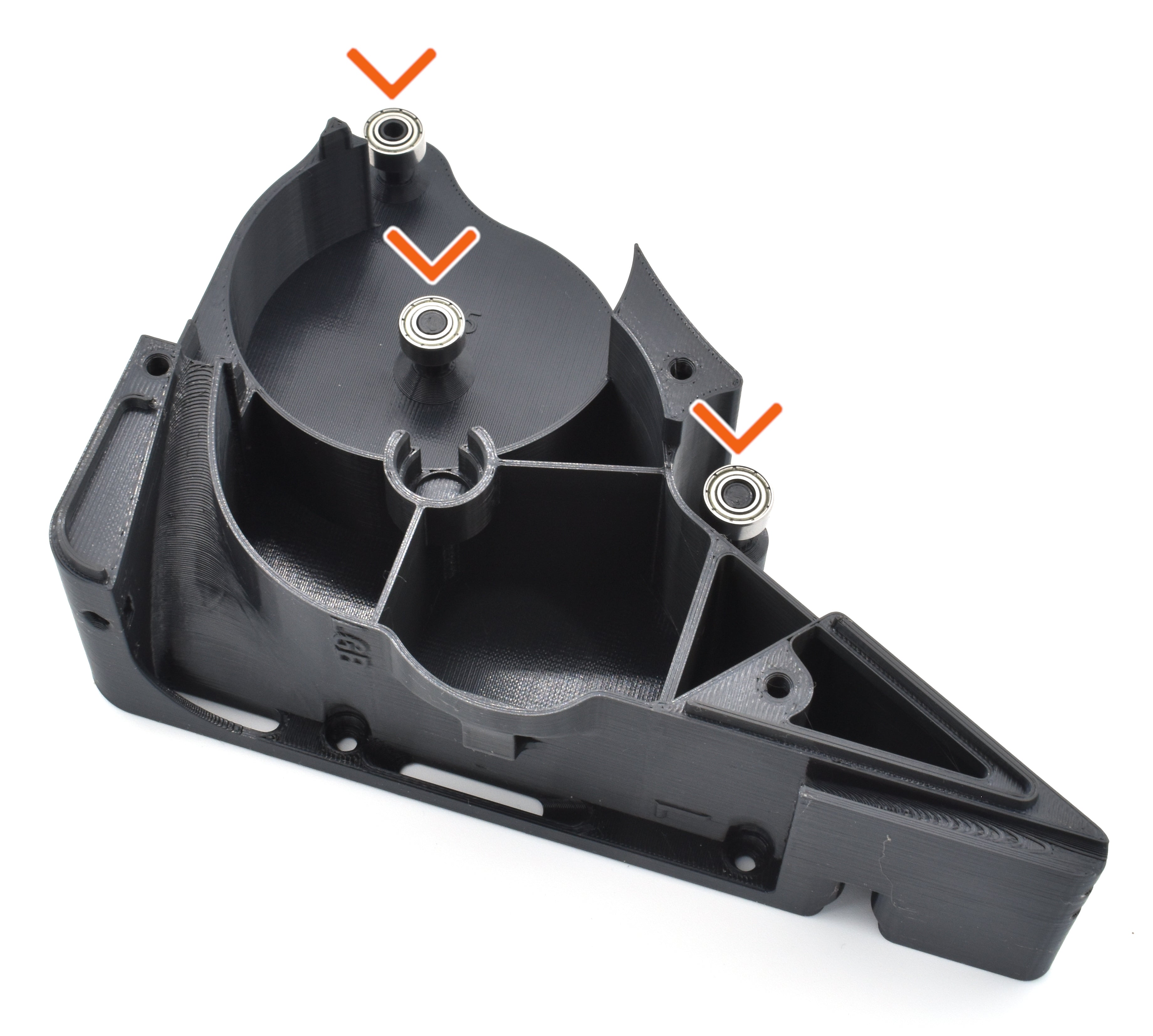

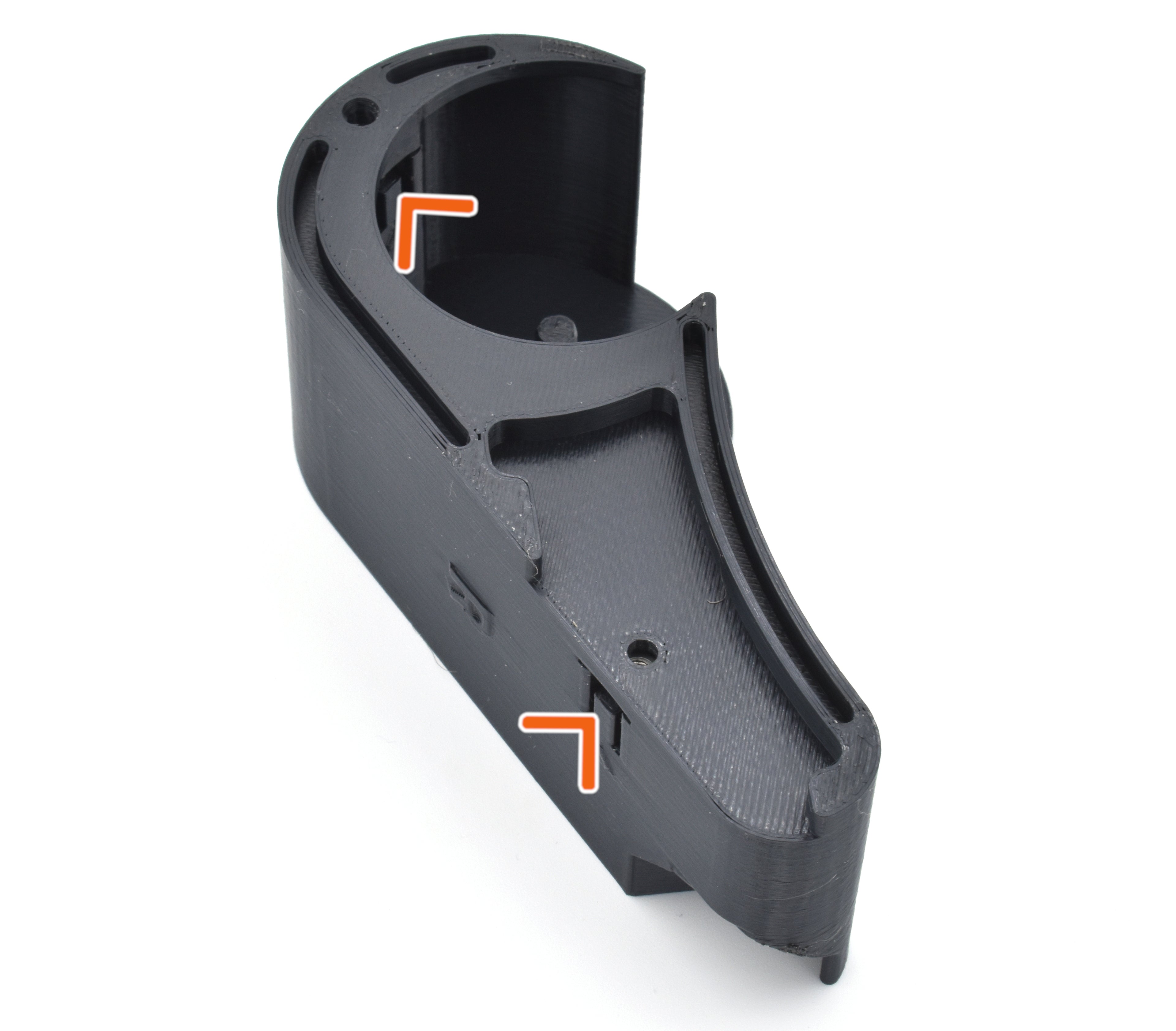

Align the R-Arm's hole with the bearing seated on the R-shell.

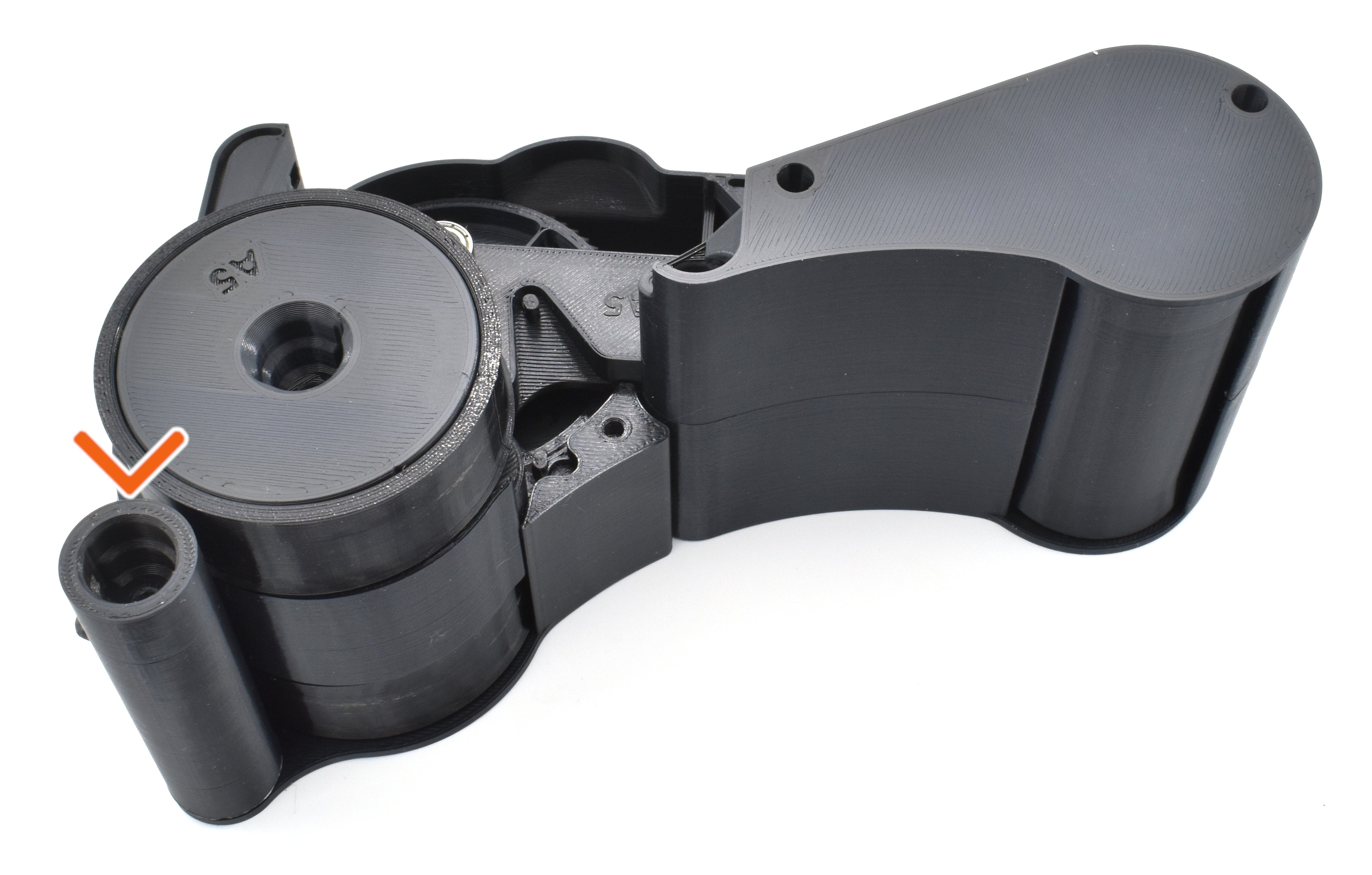

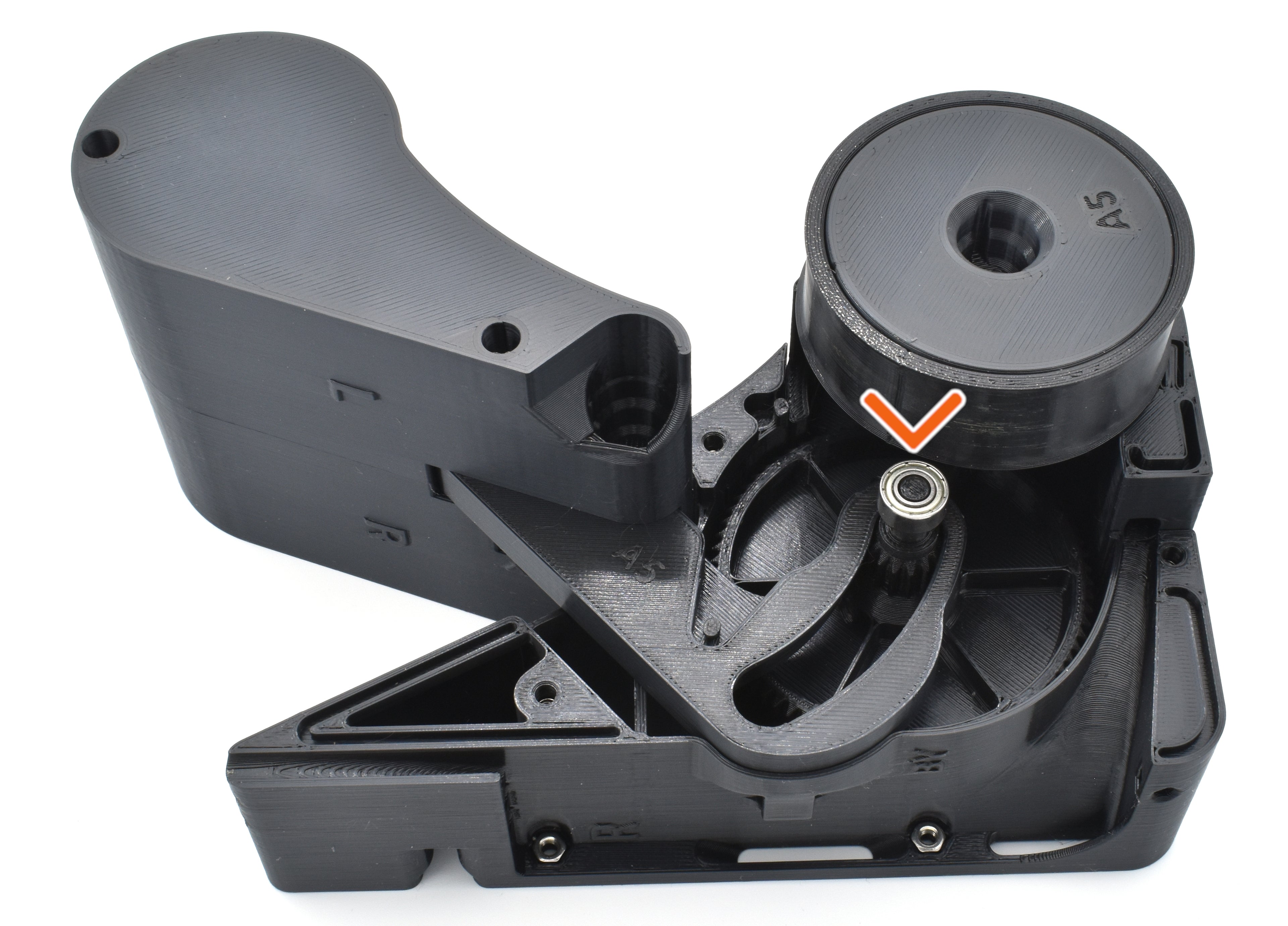

While doing this, rotate the arm so that the Ring-gear can freely pass the Front-roller and mesh with the Spur-gear.

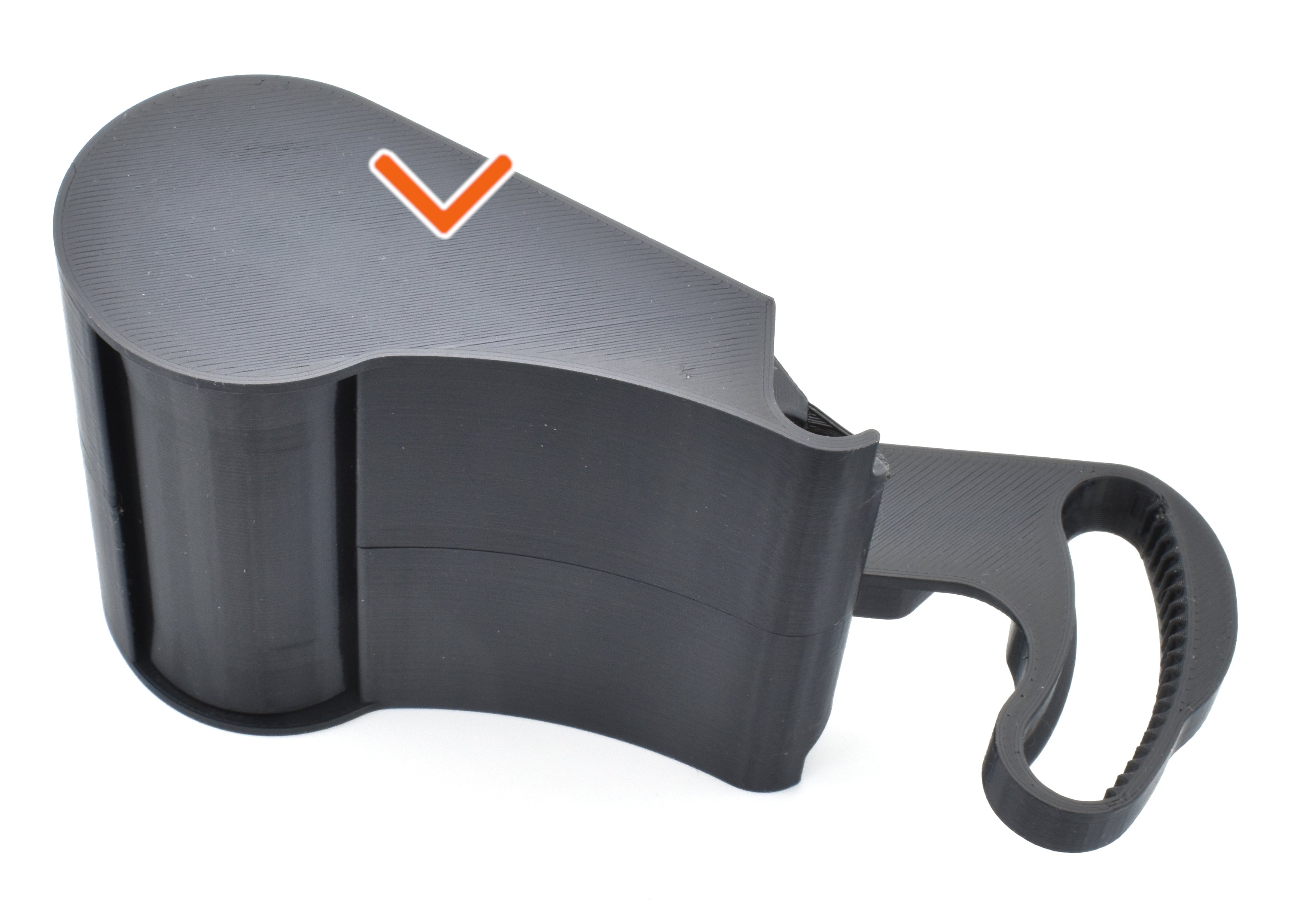

Lastly, press the Arm-assembly into place
