MK4/MK3 Setup Assembly (1/2)

Introduction

The MK4/MK3 Setup Assembly is structured as follow:

Rewindr Assembly
Connecting tubes to MK4/MK3

ℹ️ The Rewindr can be placed on either side of the printer. The following instructions show the Rewindr on the right side of the printer, but the same instructions apply to the left side, just mirrored.

Step 2

We are going to attach the PTFE-tubes before further assembly.

Each tube length corresponds to a certain PTFE-Guide number:

XXXmm Tube
XXXmm Tube
XXXmm Tube
XXXmm Tube
XXXmm Tube

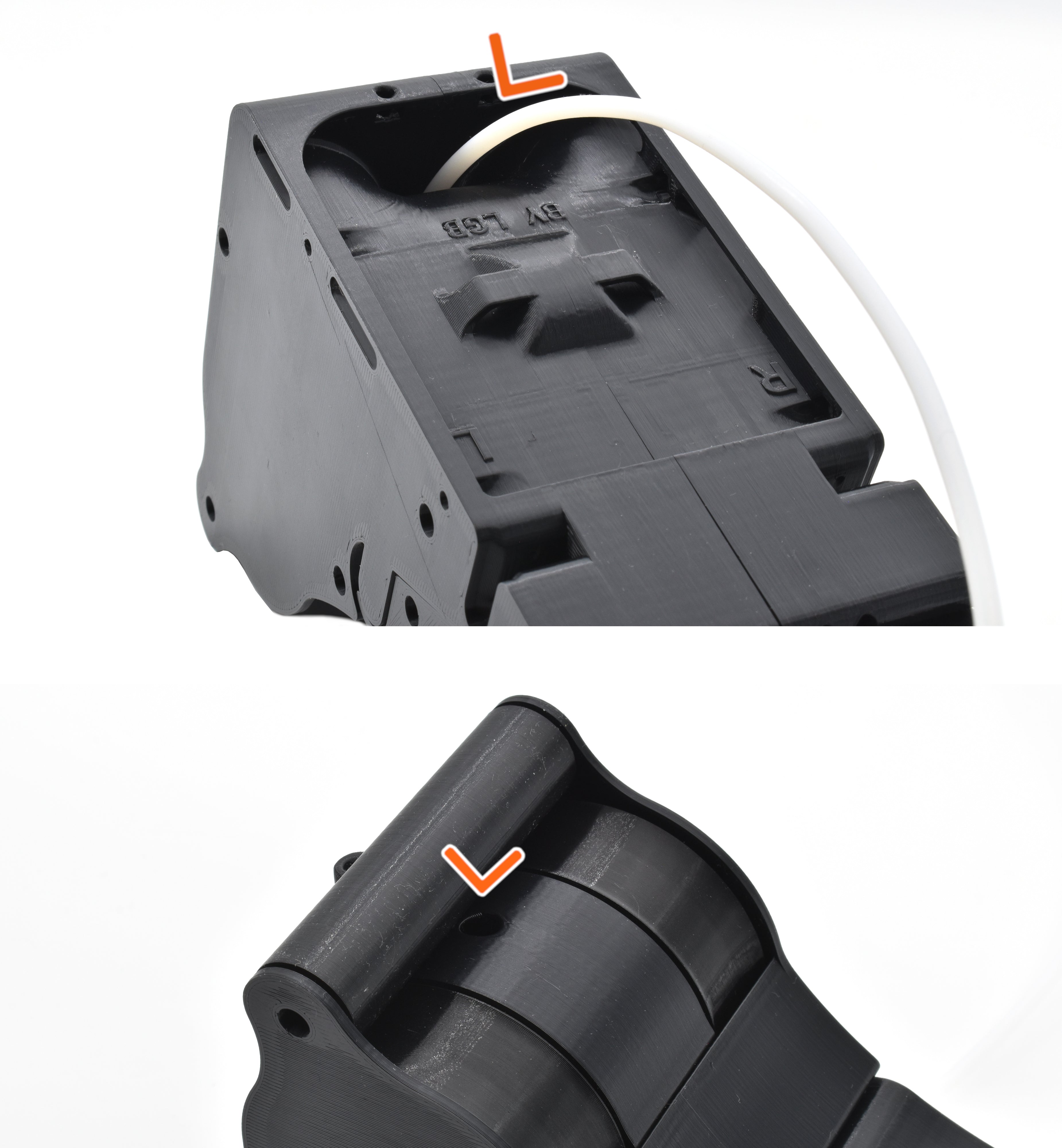

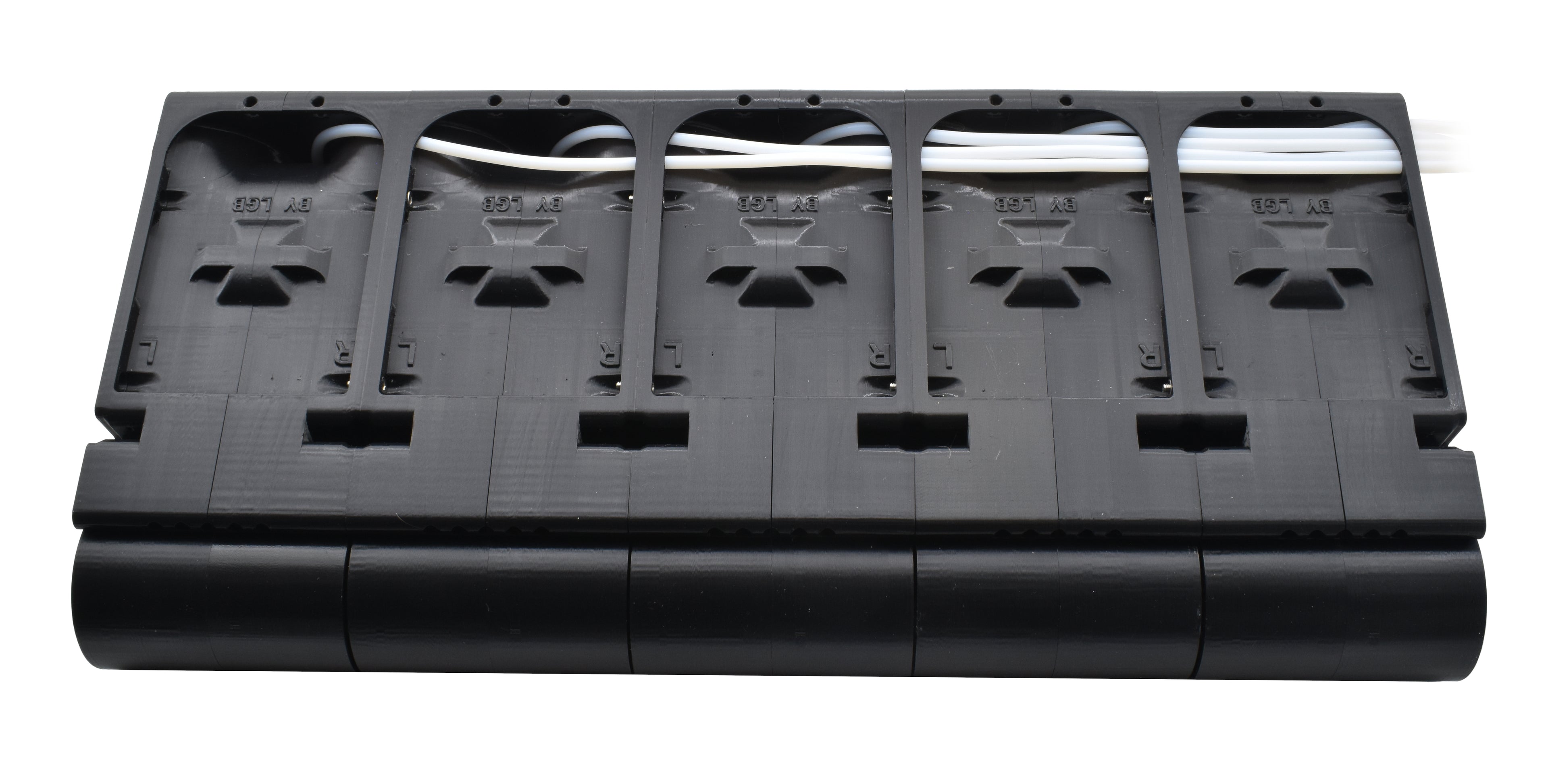

Insert a correct corresponding tube through the bottom hole of one of the modules (see picture). Make sure the tube is pushed all the way in.

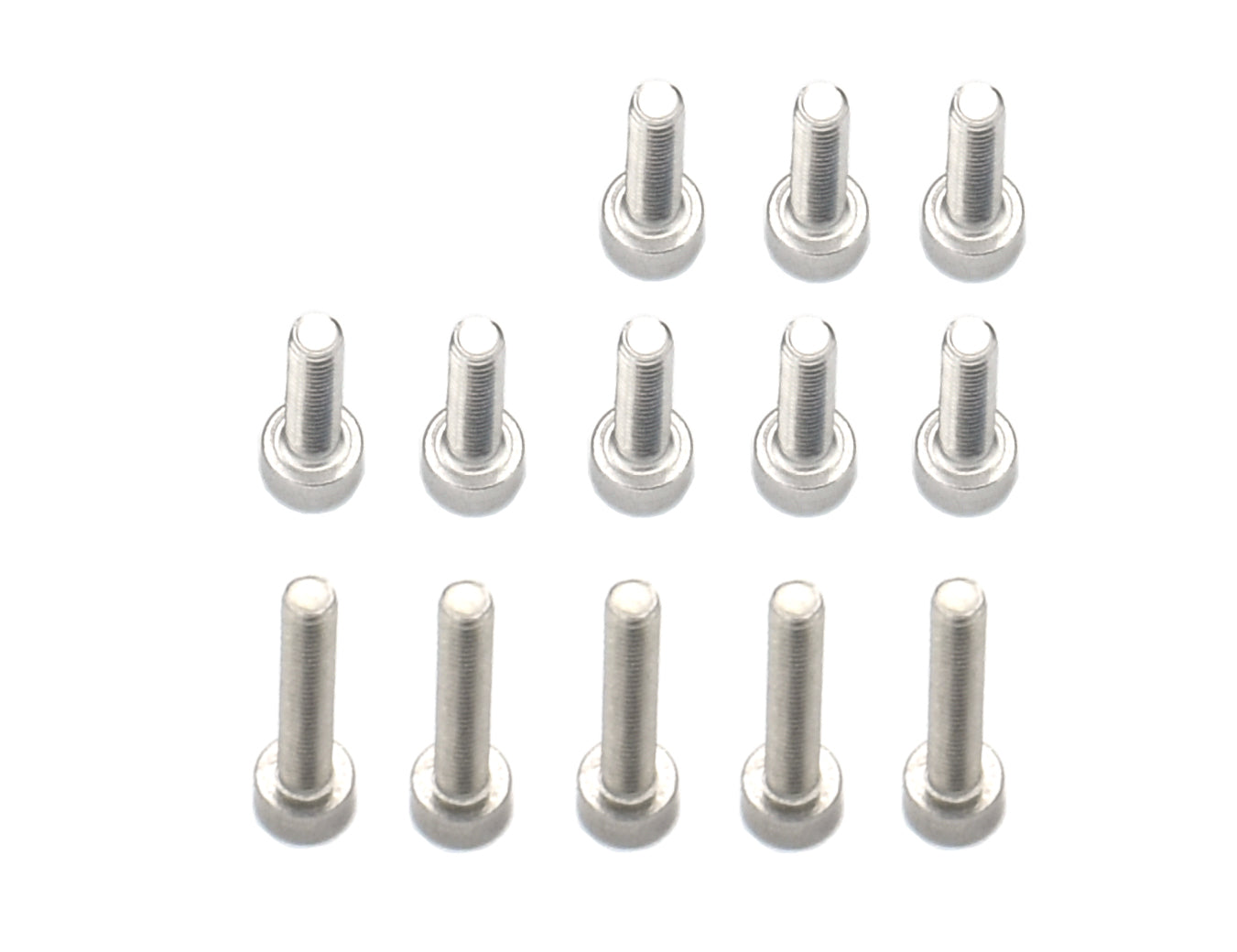

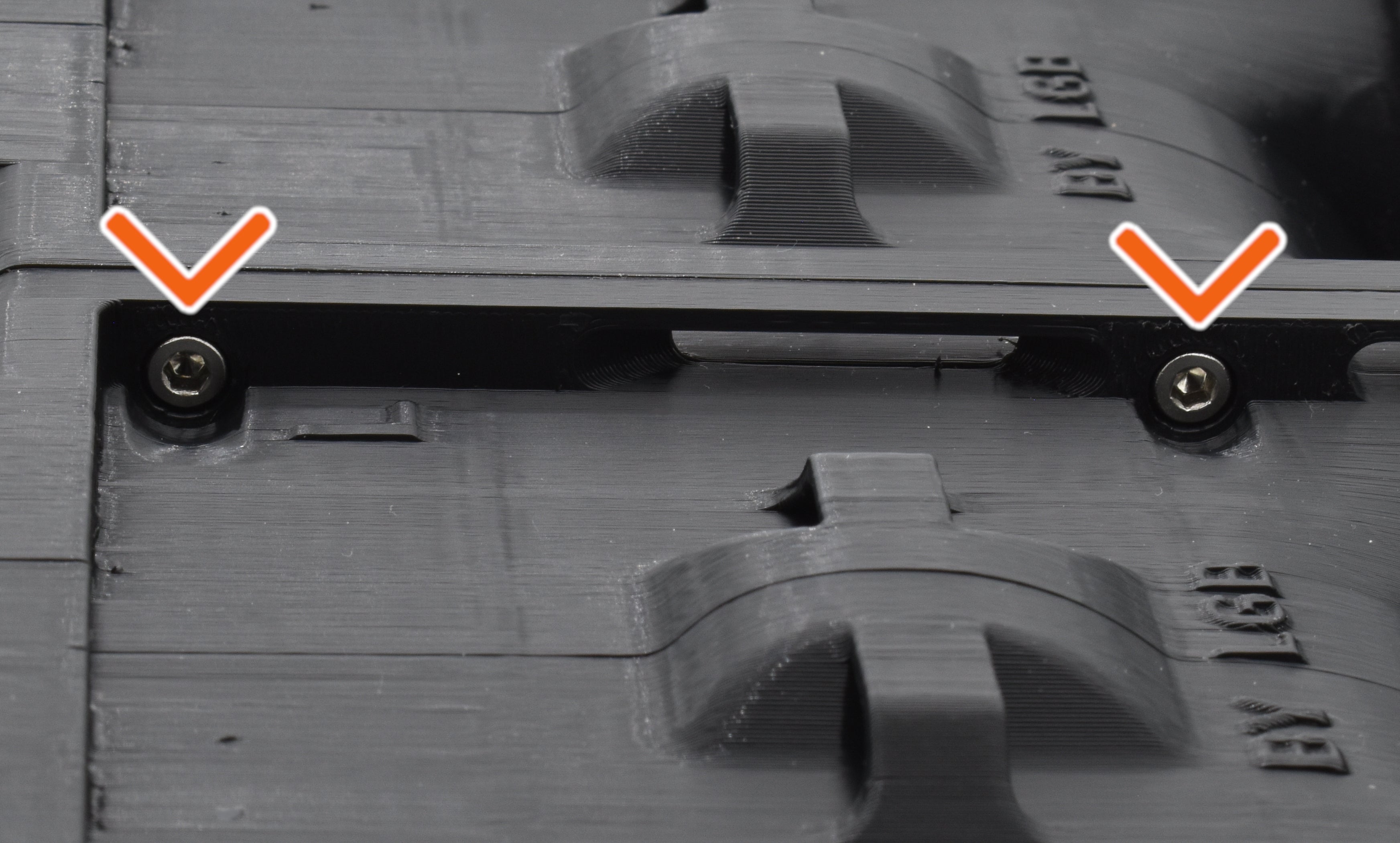

Secure the tube in place with a M3x20 screw via the screw hole in the PTFE-Guide.

Repeat these steps for all modules.

Step 10

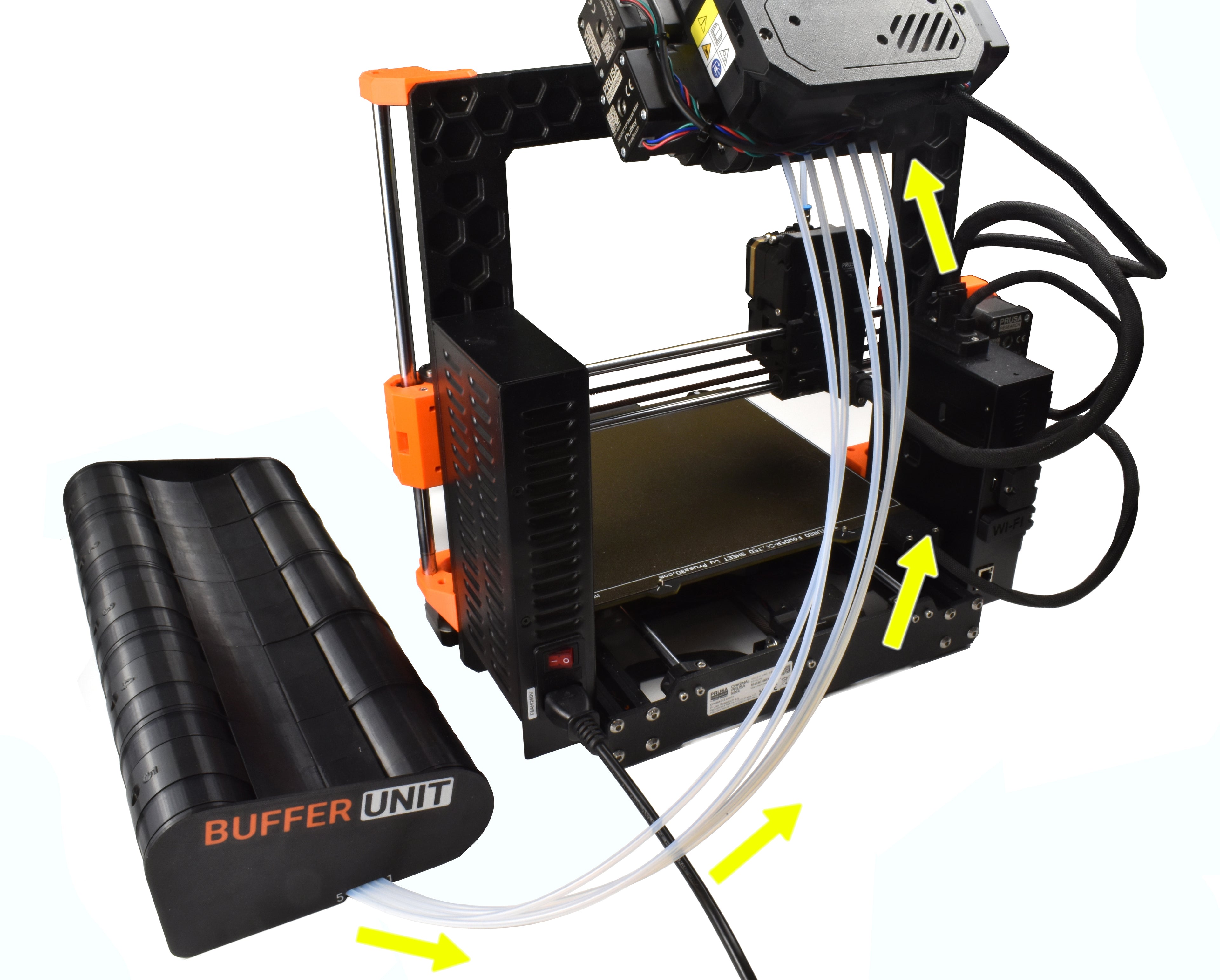

Time to connect the Rewindr to the MMU!

Place the Rewindr next to your printer.

Insert the PTFE-tubes into the MMU according to the corresponding MMU filament-number.

*The picture is from a previous version

Continue to Part (2/2) of the MK4/MK3 Setup Assembly:

MK4/MK3 Setup Assembly (2/2)
