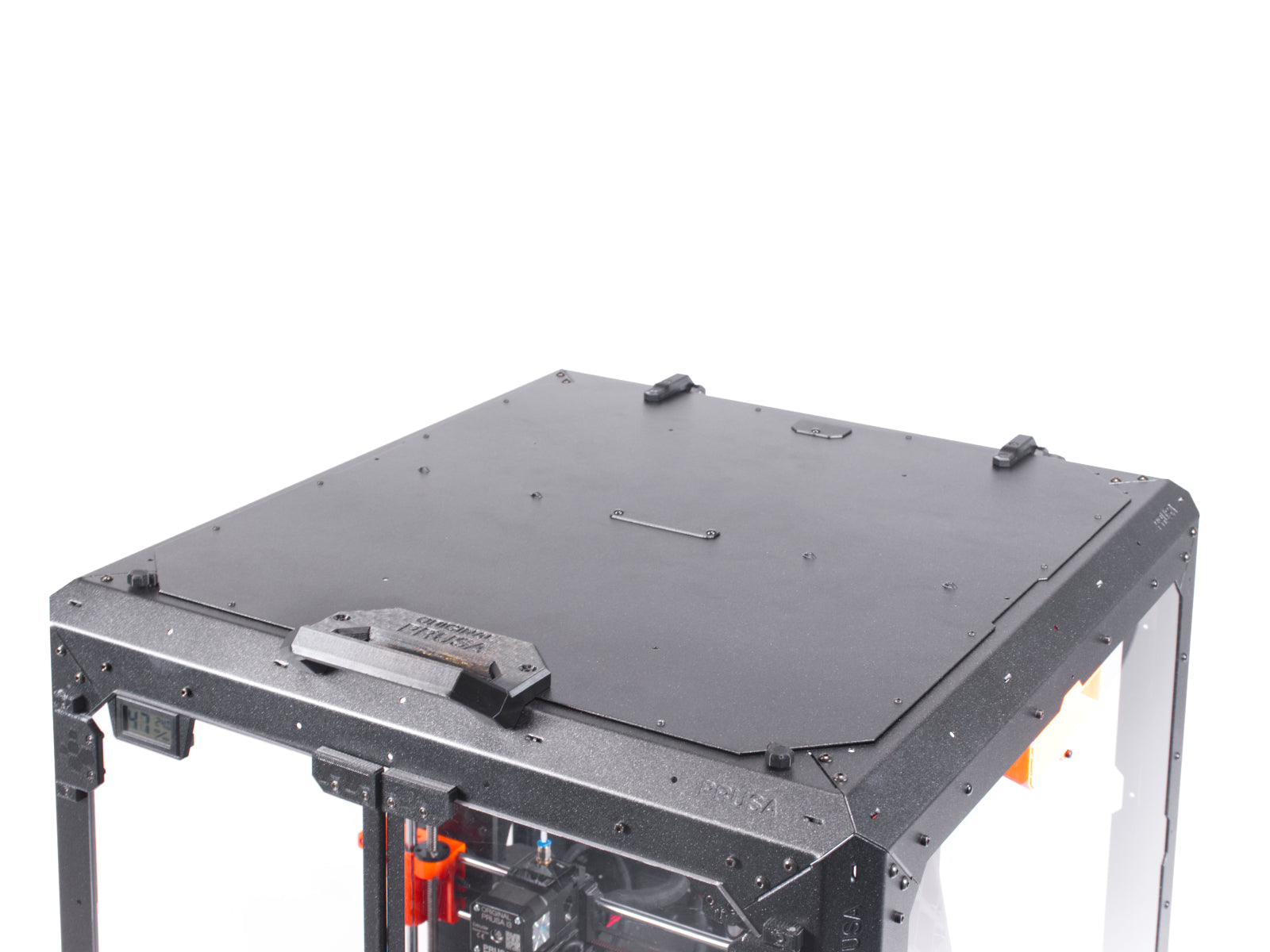

Prusa Enclosure Setup Assembly (1/2)

Step 2

We are going to attach the PTFE-tubes before further assembly.

Each tube length corresponds to a certain PTFE-Guide number:

1. XXXmm Tube
2. XXXmm Tube
3. XXXmm Tube
4. XXXmm Tube
5. XXXmm Tube

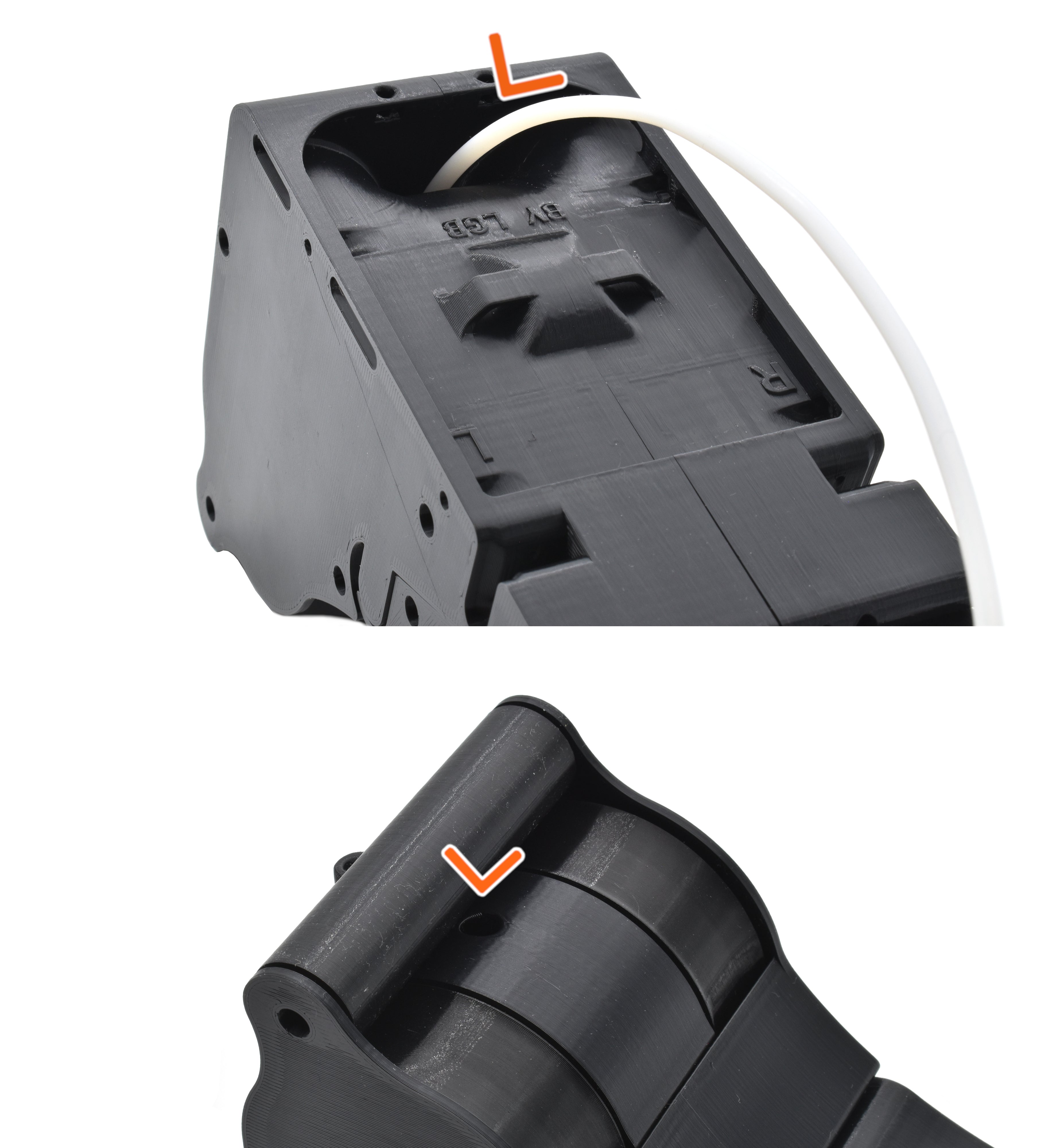

Insert a correct corresponding tube through the bottom hole of one of the modules (see picture). Make sure the tube is pushed all the way in.

Secure the tube in place with a M3x20 screw via the screw hole in the PTFE-Guide.

Repeat these steps for all modules.
