CORE One Setup Assembly (1/4)

Introduction

Before placing the Rewindr to the CORE One, we will first need to attach the MMU3, route the bowden tube, secure brackets etc.

The CORE One setup assembly is structured as follow:

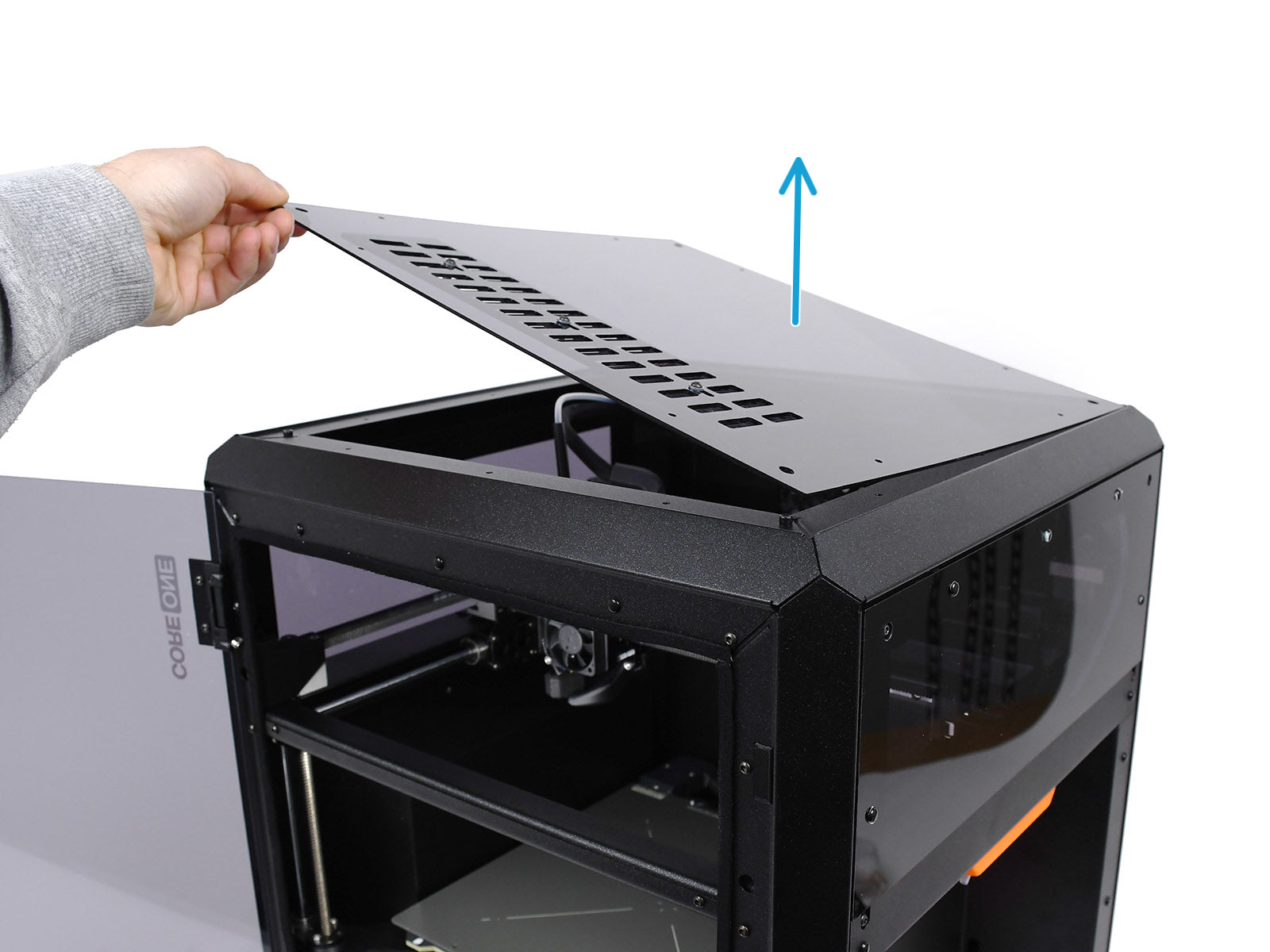

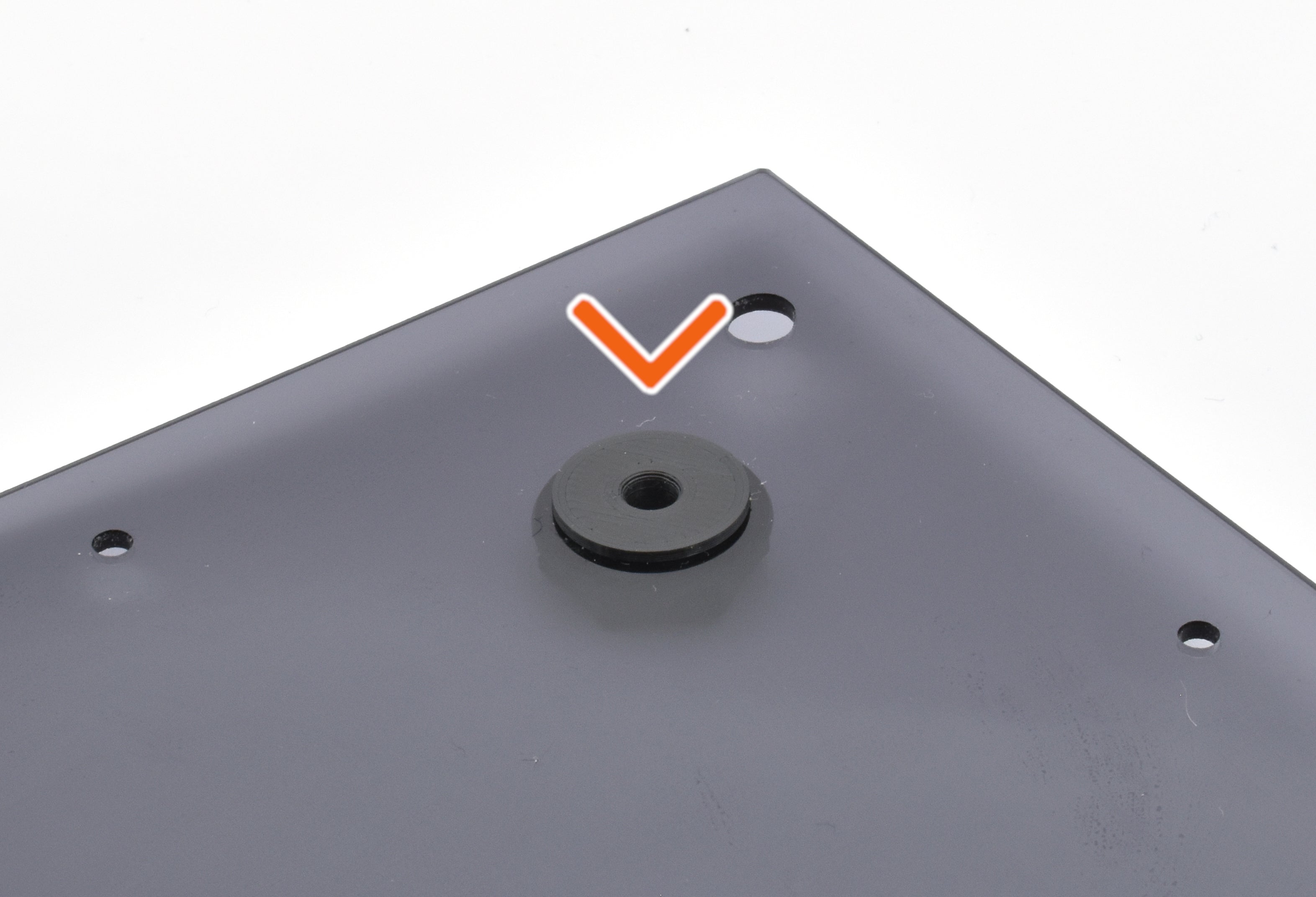

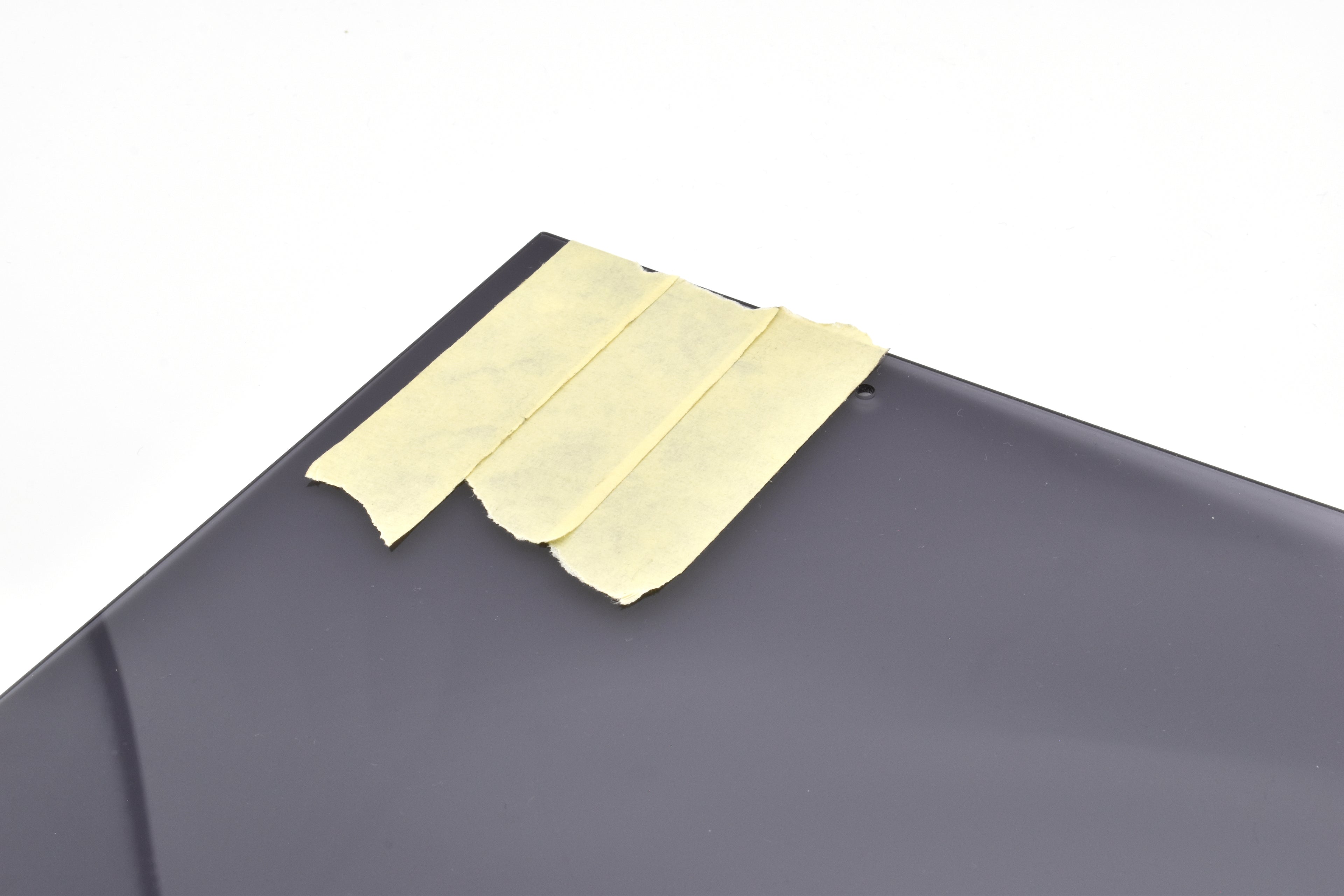

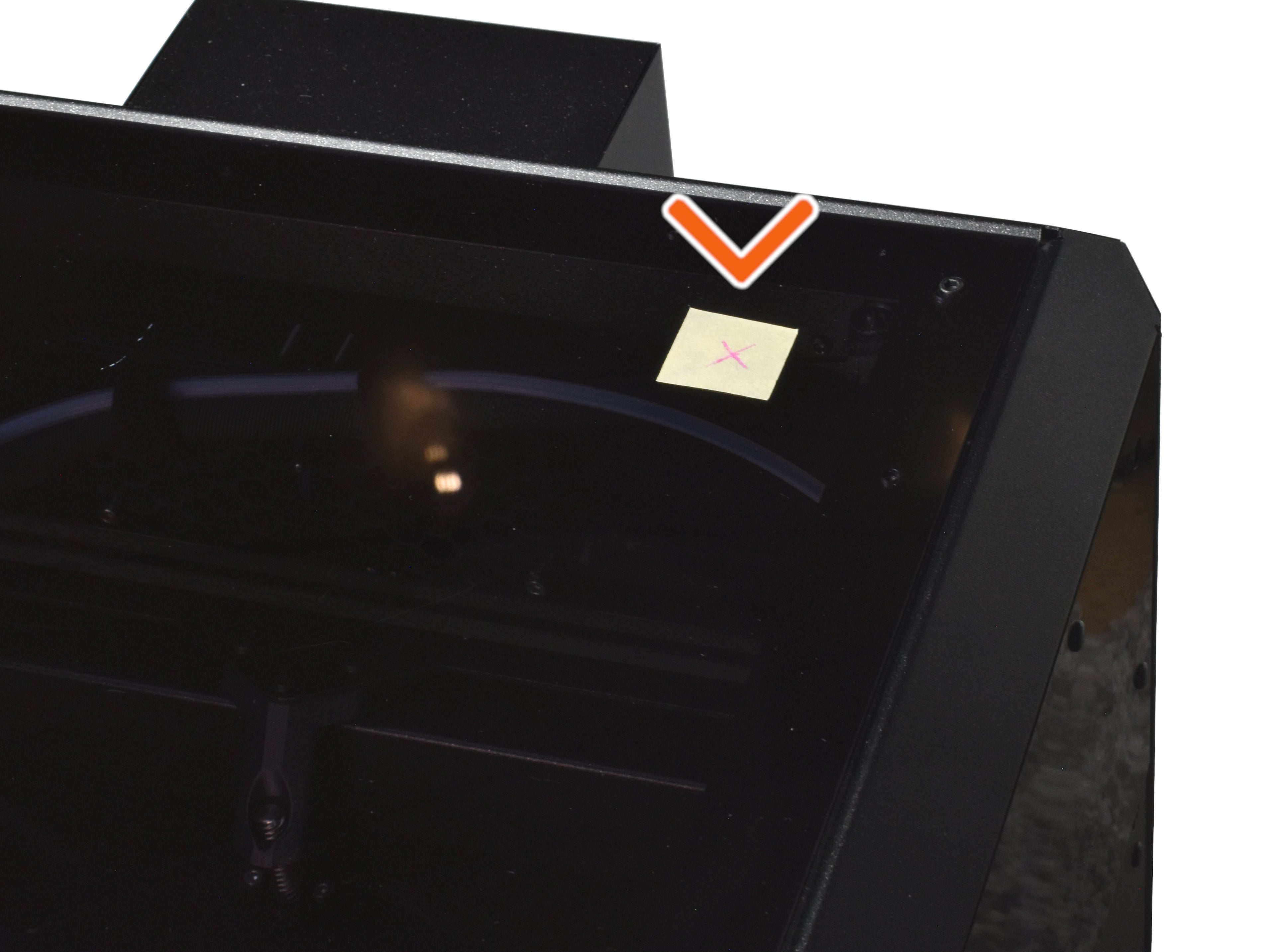

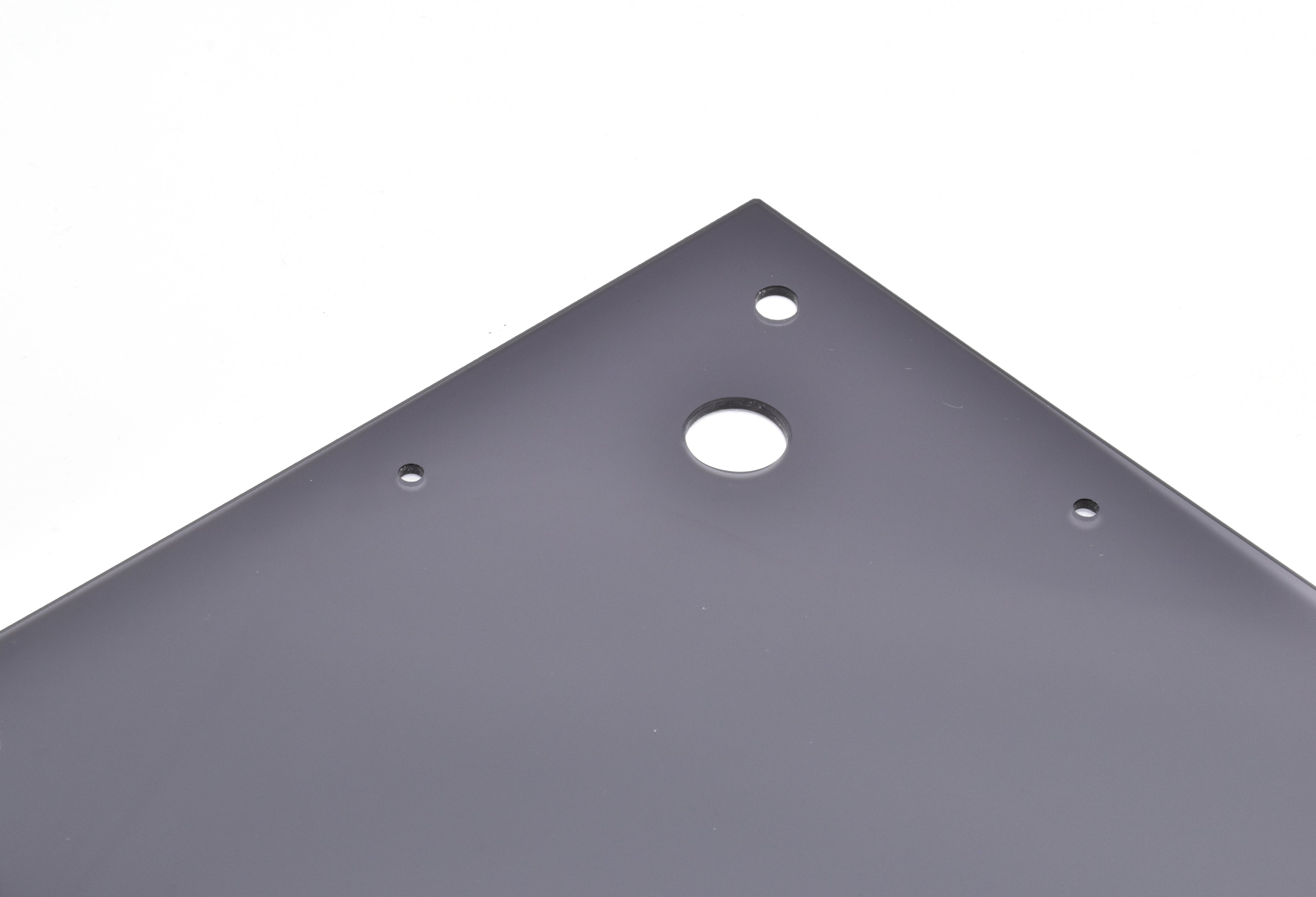

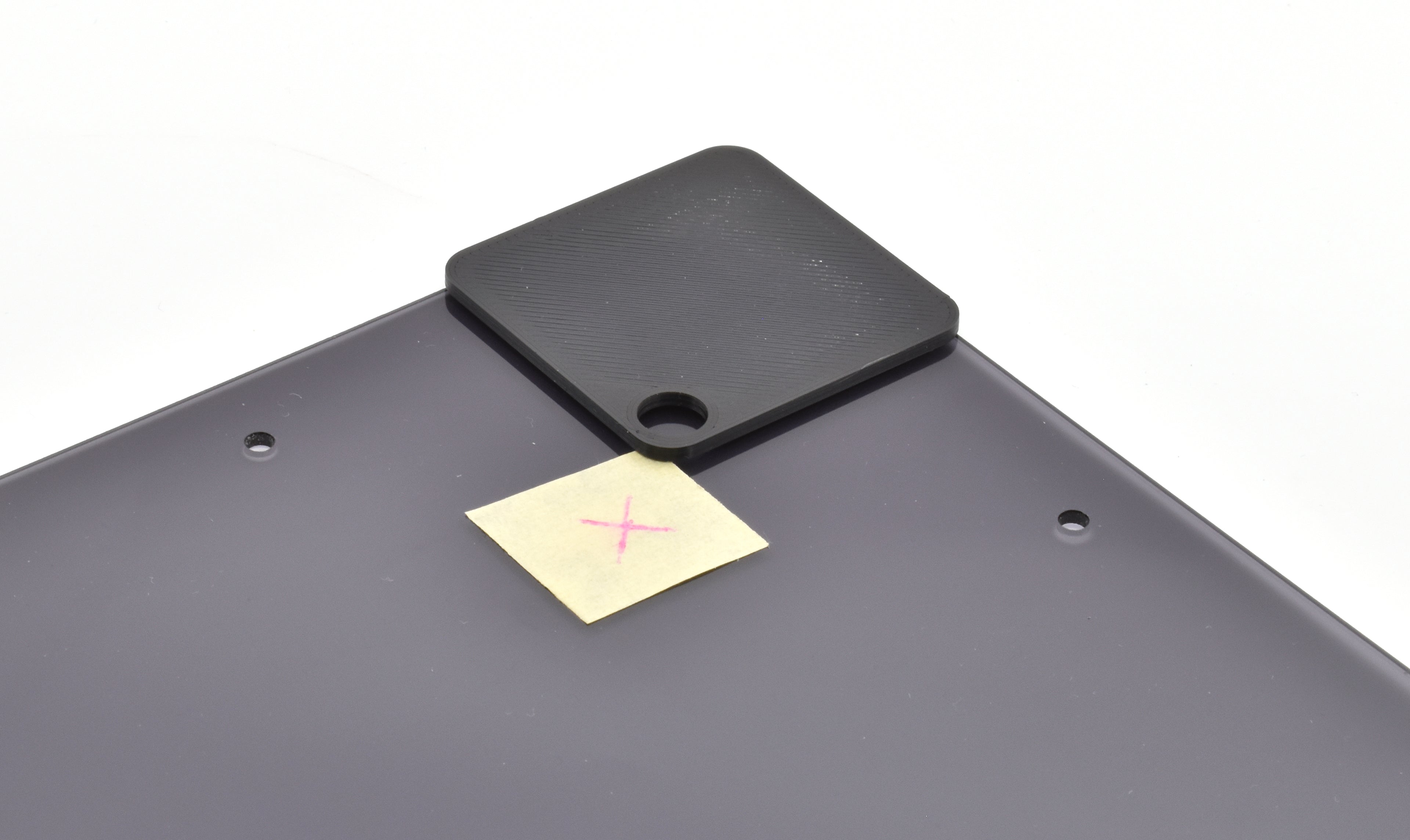

  1. Drilling of CORE One Top-panel

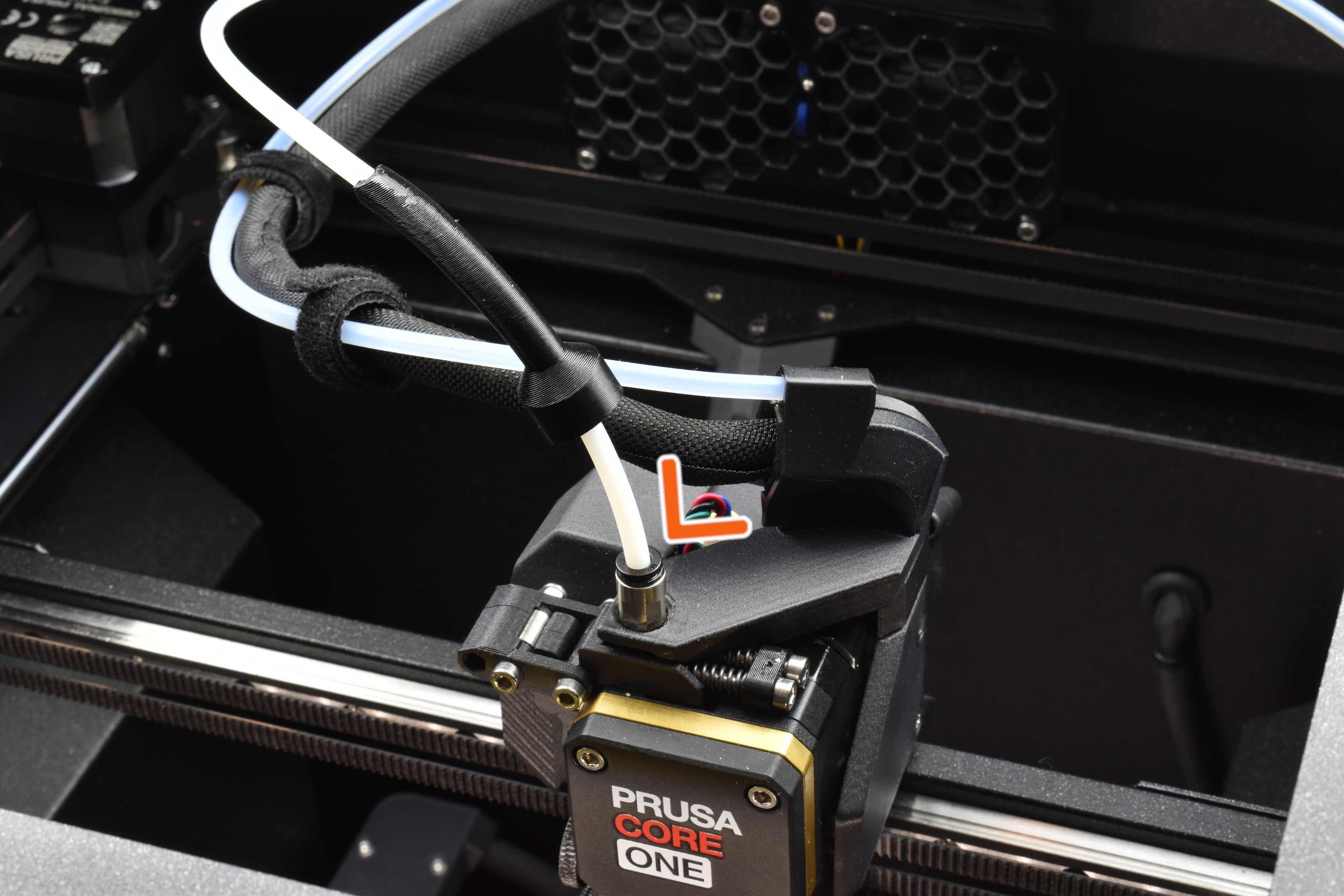

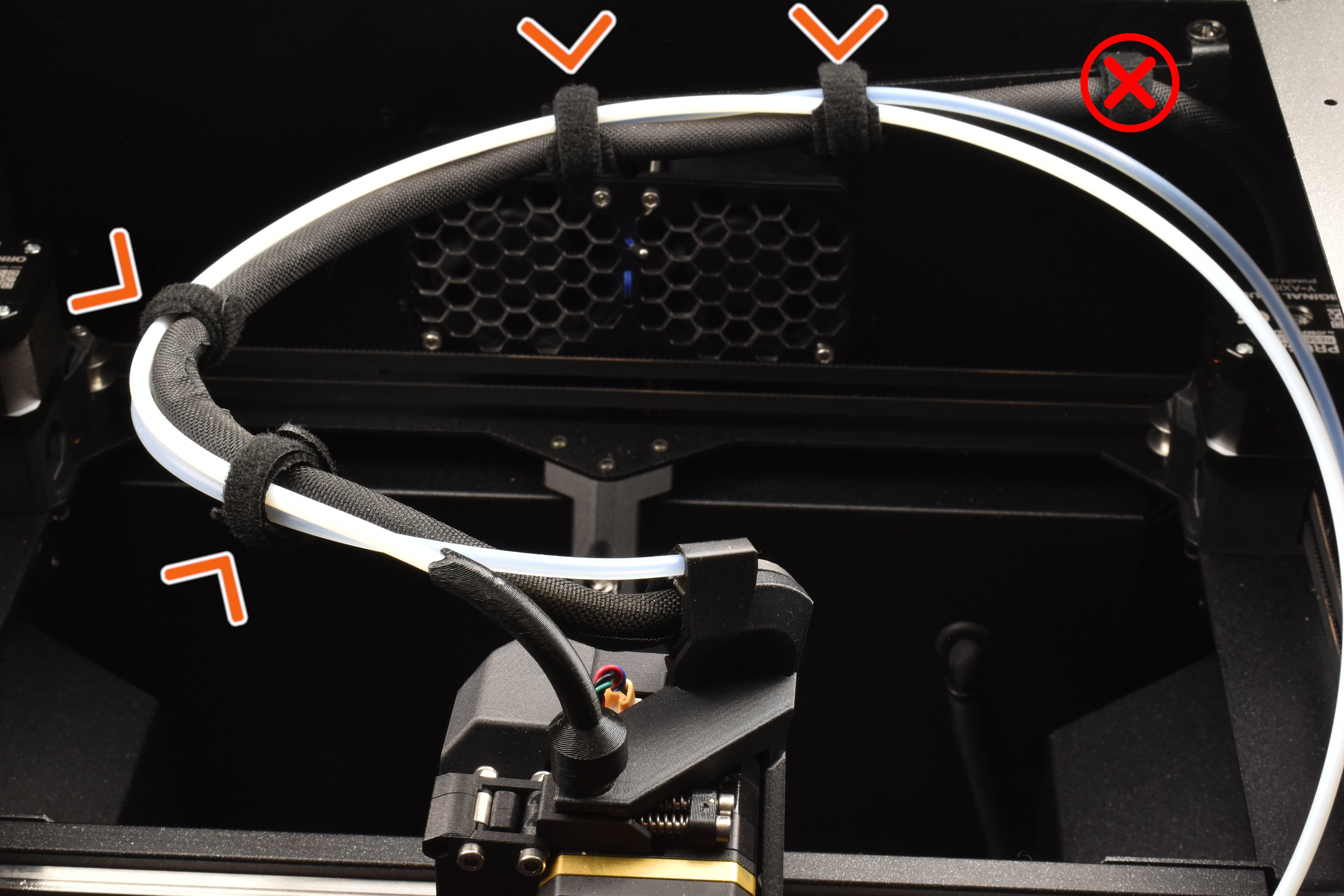

  2. Routing of bowden tube
  3. Attaching brackets/MMU3 unit
  4. Buffer Unit assembly
  5. Final mounting and tube routing
1/12
