CORE One Setup Assembly (3/4)

Step 24

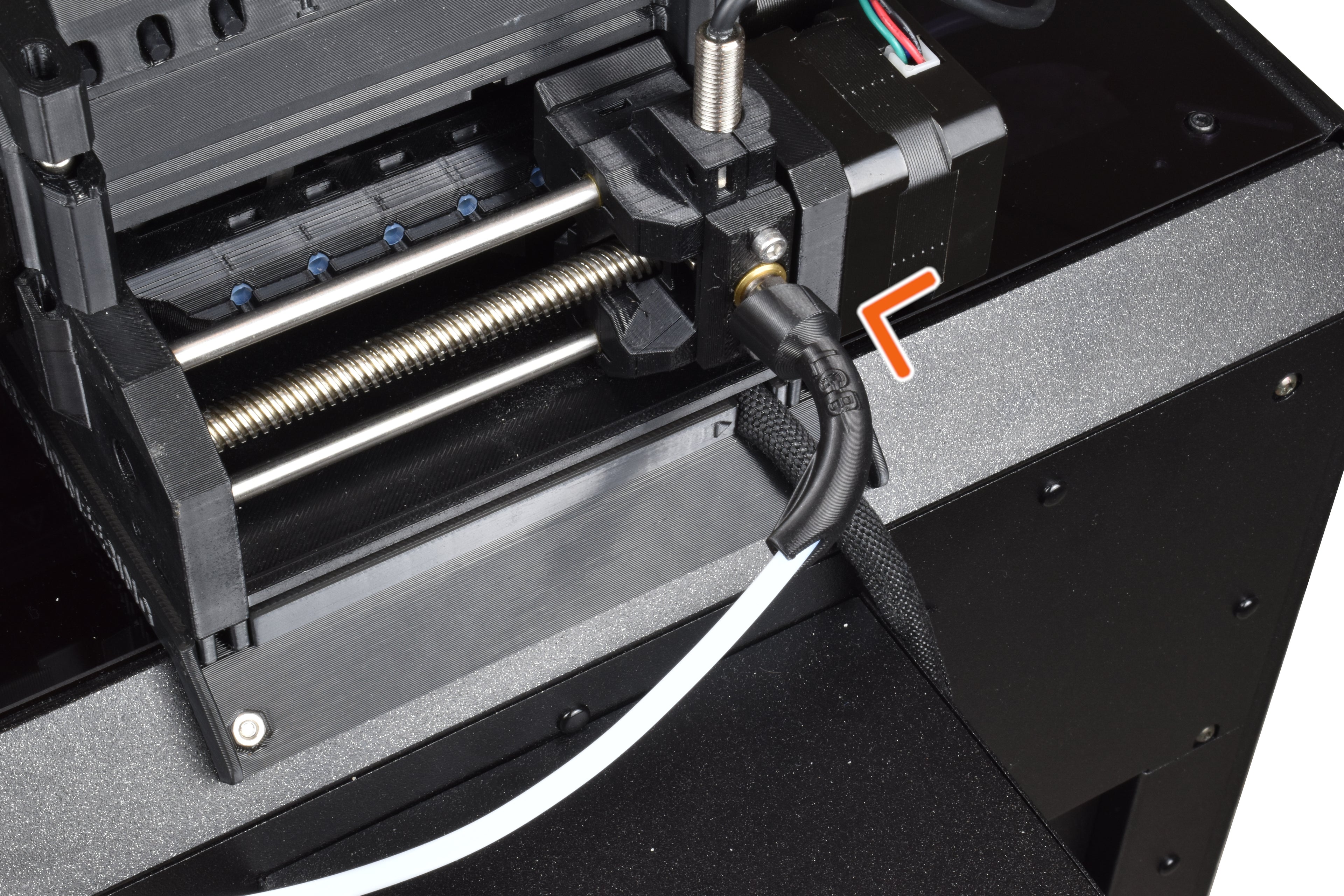

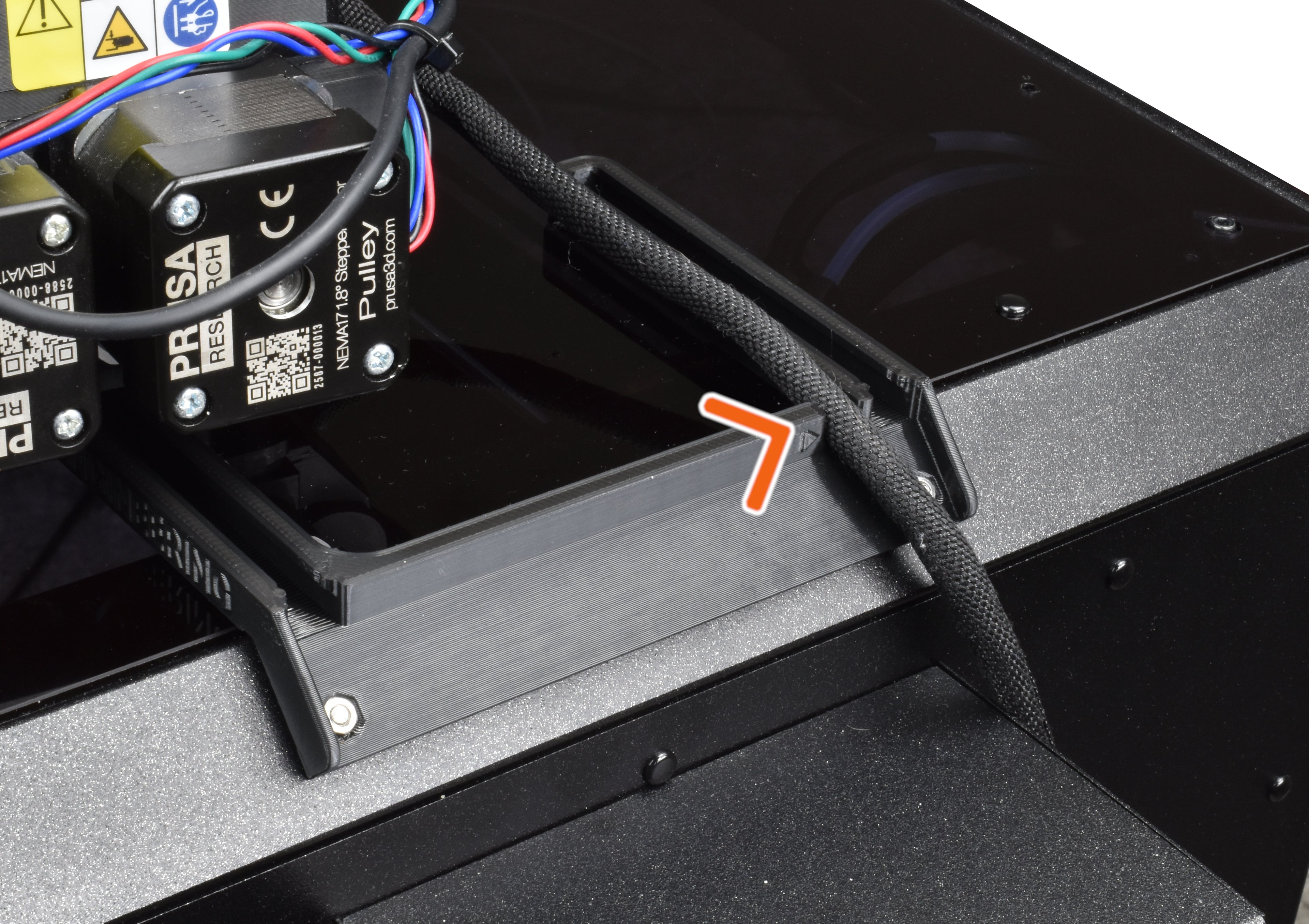

Let's finish the MMU-cable routing. Guide the cable through the slot in the MMU3-mount.

Step 33

We are finally moving on to the Rewindr now!

Prepare the following parts:

M3x20 screw (5x)
M3x10 screw (8x)
400mm PTFE-tube (1x)
410mm PTFE-tube (2x)
480mm PTFE-tube (2x)

ℹ️ You may need to adjust the tube lengths later.

Continue to Part (4/4) of the CORE One Setup Assembly:

CORE One Assembly (4/4) ❯
